1. Installation

QNX SDP8.0Quickstart GuideDeveloperSetup

This section helps you to know about the prerequisites, and how to install QNX SDP on your development host.

You can install a QNX system on a Linux or Windows development host and deploy the QNX OS on a target system:

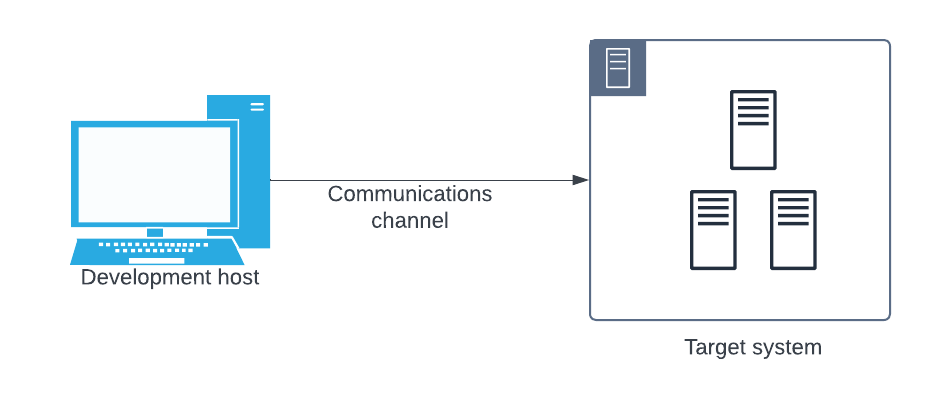

Image of host and target machines
The development host runs the QNX Tool Suite; the target system runs the QNX OS itself plus all the programs you're going to develop:

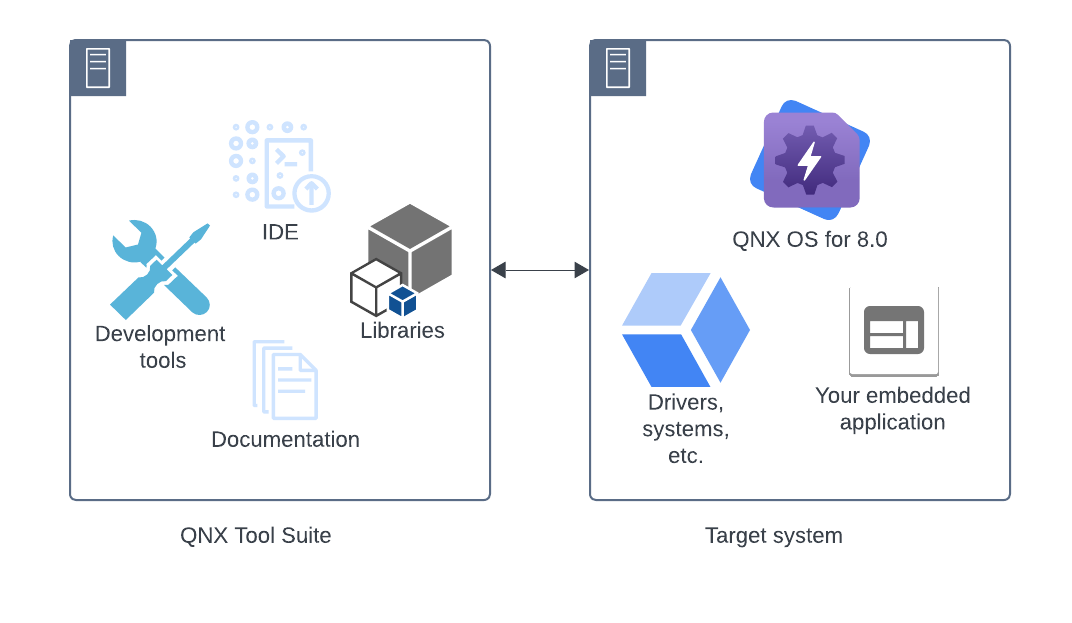

Image of programs that run on host and target machines
Note:
Since the QNX OS is designed and used the same way for all platforms, for this guide we'll use Windows as a development host, and a generated virtual machine as the target.

Prerequisites

A QNX system has the following requirements, before you can start building and running programs:

Development host

You will need a supported x86-based development host such as a PC running a Windows or Linux OS. For a list of the supported versions of the various host OSs, go to the QNX SDP Release Notes.

Note:
  • QNX SDP isn't supported on host systems that use ARM processors.
  • QNX SDP 8.0 doesn't support macOS.

Target system

You will need a virtual or embedded target system. You can use a virtual machine target such as VMware, Virtual Box, or QEMU (Quick EMUlator) that runs on your development host, or you can use a supported embedded hardware target system. For more information on how to use a BSP, see the Working with QNX BSPs chapter of the Building Embedded Systems guide.

If you are using a physical target system, you will need a means to communicate between your host and target system. This could be, for example, through a hard wired USB/serial cable or a network connection. For details on this see the documentation included with the BSP of your choice and the Working with QNX BSPs chapter of the Building Embedded Systems guide.

Your myQNX account and software license

You will need a myQNX account with a valid QNX SDP 8 license deployed to it before you can access and use the software. If your license is being provided to you through your company, then your company's license administrator needs to deploy a license to your myQNX account. If you are both the owner and the user of the license (such as when you have requested an evaluation or non-commercial license through the web site or when your software order has been fulfilled directly to your account), then you need to use the myQNX License Manager to accept the software license into your account and then deploy the license to your own account as a user. To take a tour of myQNX License manager, click Features: Take a Tour from within the interface. For more details, go to Manage Your Product Licenses in the Using the QNX Software Center chapter of myQNX License Manager and QNX Software Center User's Guide.

Installing QNX SDP on your development host

To install QNX SDP, you need to complete the following steps:
  1. Install the QNX Software Center. For details, refer to Install and launch the QNX Software Center in the Using the QNX Software Center chapter of myQNX License Manager and QNX Software Center User's Guide.
  2. Create an installation of QNX SDP 8 using QNX Software Center. For more information, refer to Install the QNX Software Development Platform in the Using the QNX Software Center chapter of myQNX License Manager and QNX Software Center User's Guide.
  3. Install the IDE of your choice (QNX Momentics IDE, or QNX Toolkit extension for Microsoft VS Code IDE). This guide uses the QNX Toolkit for the purpose of example. For information about installing QNX Toolkit, refer to Installation in QNX Toolkit for Visual Studio Code.
